Compatible Replacement Lift/Swing Joystick Controller for JLG – OEM No. 1600284

JLG Aerial Lift Parts

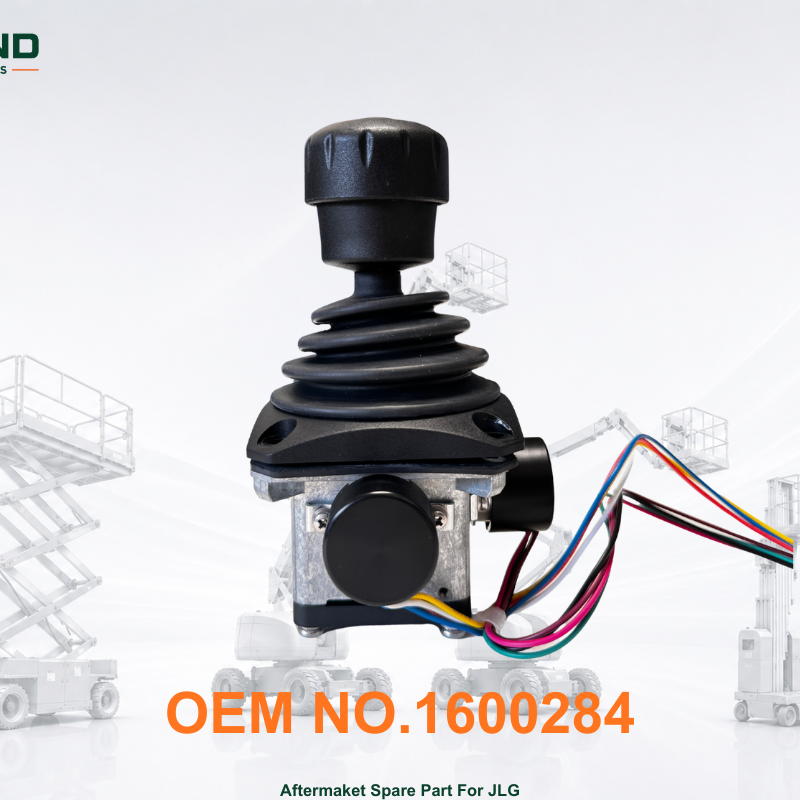

Compatible JLG Lift/Swing Joystick Controller 1600284 | Locking Controller Assembly with Round Gate and 9-Pin Connector

OEM Number: 1600284

Lift / Swing Joystick Controller

Application: JLG Boom Lifts (Model, Serial Number and Connector Must Be Confirmed)

🟦 Product Overview

This is a compatible aftermarket replacement lift/swing joystick controller for JLG aerial work platforms using OEM reference 1600284.

The controller is used at the platform control station to provide proportional command input for lift and swing functions. JLG identifies this part as a locking lift/swing joystick controller. The applicable configuration uses a standard knob, round gate and 9-pin female connector.

⚠️ Important Before Ordering

Please confirm the following before placing an order:

Machine model
Machine serial number
OEM reference 1600284
Photo of the original controller and label
Round-gate configuration
Connector type and pin layout
Lift/swing function assignment

JLG service literature notes that controller versions can vary by machine and serial-number range. Visually compare the original controller before ordering.

🟩 Product Specifications

Item	Details
Product Name	Lift / Swing Joystick Controller
OEM Reference	1600284
Brand Compatibility	JLG
Function	Proportional lift and swing control
Handle Style	Standard knob without rocker switch
Gate	Round gate
Connector	9-pin female connector
Adjustment	Non-adjustable controller; separate circuit card used for adjustment
Part Type	Compatible aftermarket replacement
Application	Selected JLG boom lift platform control systems

🟨 Product Description

The JLG 1600284 joystick controller converts operator movement into proportional lift and swing commands at the platform station. It is intended for repair or replacement of a worn, damaged or unresponsive controller in compatible JLG boom lifts.

This replacement is suited to aerial work platform maintenance, rental fleet service and control-box refurbishment. Correct controller identification is important because visually similar joysticks may use different gates, connectors, internal circuits or function assignments.

🟥 Compatible JLG Models

JLG controller documentation lists OEM reference 1600284 for lift and swing functions on the following model families:

JLG 400S and 460SJ
JLG 600A and 600AJ
JLG 600S and 600SJ
JLG 600SC and 600SJC
JLG 601S
JLG 660SJ and 660SJC
JLG 740A
JLG 800A and 800AJ

Compatibility notice: The model list is a reference only. Final fitment depends on the exact machine model, serial-number range and installed controller configuration. Confirm the OEM number, connector and original unit before purchase.
